몸통(trunk)
가슴

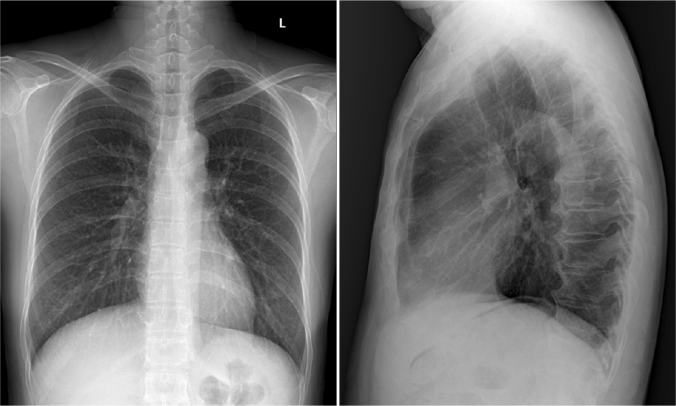

- Chest PA/lateral

갈비뼈(늑골, rib)
- rib AP/both oblique

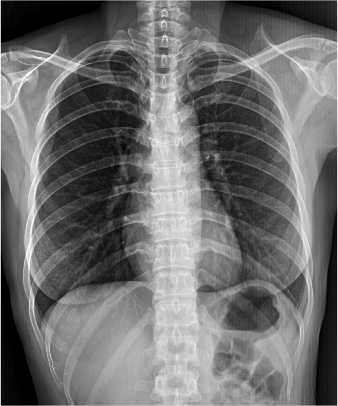

rib AP

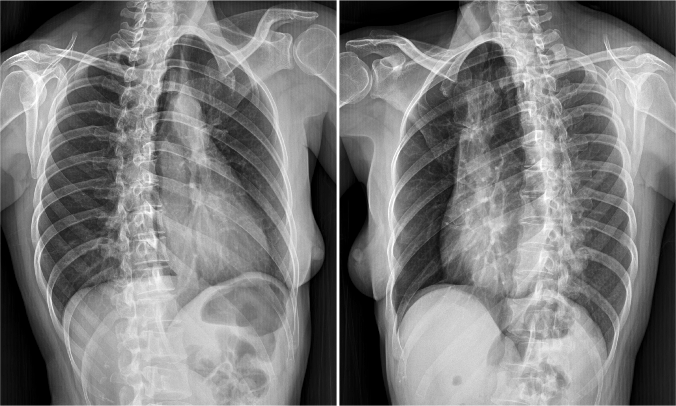

rib both oblique

복통/옆구리

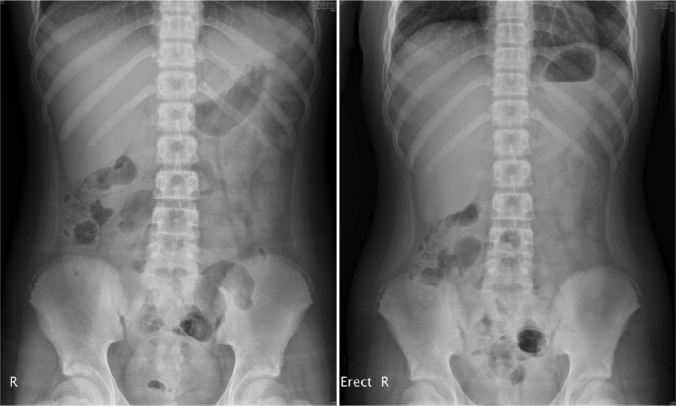

Abdomen supine/erect

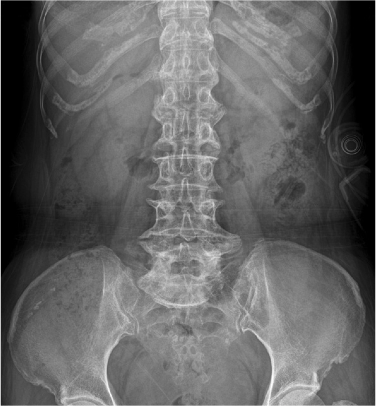

KUB(Kidney/Ureter/Bladder)

상지(upper extremity)
Clavicle/Scapular/AC joint
Clavicle | Scapular | AC joint |
|
|
|
Clavicle AP
Clavicle tilt view
Scapular AP
Scapular lateral
Scapular Y-View
Zanca view
어깨(shoulder)
- Shoulder impingement series: 4가지로 구성
- (Rt or Lt) Shoulder axillary view
- (Rt or Lt) Scapular outlet view
- (Rt or Lt) 30° caudal tilting view(Rockwood view)
- (Rt or Lt) Shoulder AP
Shoulder AP
Shoulder (supraspinatus) Outlet View
30° caudal tilting view(Rockwood view)
Shoulder Axial(superior-inferior axial)
팔꿈치/전완부(elbow/forearm)
- (Rt or Lt) Elbow AP/lat/both oblique
- (Rt or Lt) Forearm AP/lat
Elbow AP
Elbow lateral
Elbow oblique
- Elbow medial oblique
- Elbow lateral oblique
Forearm AP
Forearm Lateral
손목(wrist)
- (Rt or Lt) Wrist AP/lat/both oblique
- tunnel view
wrist PA
Wrist Lateral
wrist oblique
wrist oblique: supinated oblique view
wrist oblique (Billiard view)
wrist carpal canal
손(hand)/손가락(finger)
- Hand : (Rt or Lt) Hand AP/lateral/oblique
- Finger : (Rt or Lt) Finger AP/lateral/oblique
- Thumb : (Rt or Lt) Finger AP/Lateral(thumb은 그 자체가 oblique)
- Scaphoid bone fx.가 의심될 때 : (Rt or Lt) Billiard view 추가
Hand AP
Hand oblique
Hand lateral (fan-like)
Finger AP
Finger Lat
finger both oblique
하지(lower extremity)
고관절/골반(hip/pelvis)
- Both hip AP
- Both hip AP/(Rt or Lt) hip translateral
- Both hip AP/frog leg lateral
- Pelvis AP
- Pelvis both oblique(iliac wing view + obturator foramen view)
- Pelvis inlet view : Posterior displacement, anterior pelvic의 inward 또는 outward rotation 등을 보는데 유용
- Pelvis outlet view : 골절된 편측 골반의 상/하 전위를 평가하는데 유용
- Judet view(internal(obturator) oblique view + external(iliac) oblique view) : acetabulum fx.를 보기 위한 view
Hip AP
Frog leg Lateral
Hip lateral
Hip axial -Translateral
Pelvis AP
Pelvis lateral
Pelvis both oblique
pelvis Inlet view
Pelvis Outlet view
대퇴부(femur)

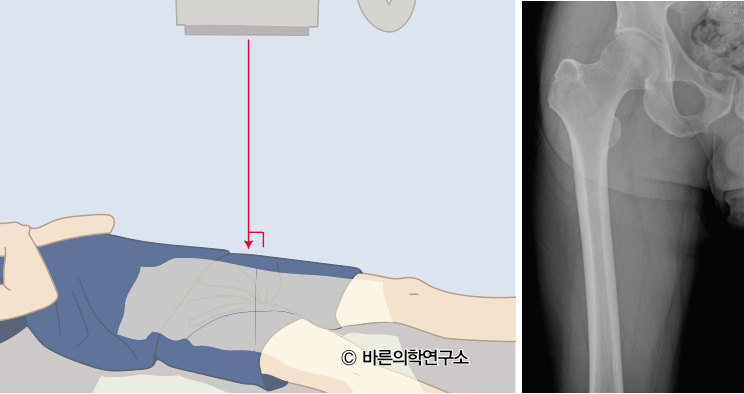

Femur AP
Femur Lateral
무릎(knee)
- Knee AP/lateral
- Knee axial view: skyline view, Merchant view
- Knee Both oblique
- Knee Plateau(intercondylar notch view)
- Knee tunnel view
- Knee Standing AP, Standing Rosenberg view
- Knee AP, lateral
± skyline, merchant, tangential view

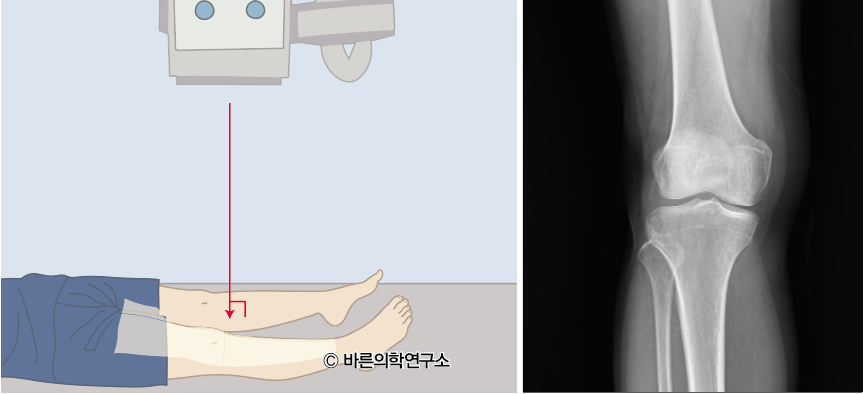

Knee AP

Knee Lateral

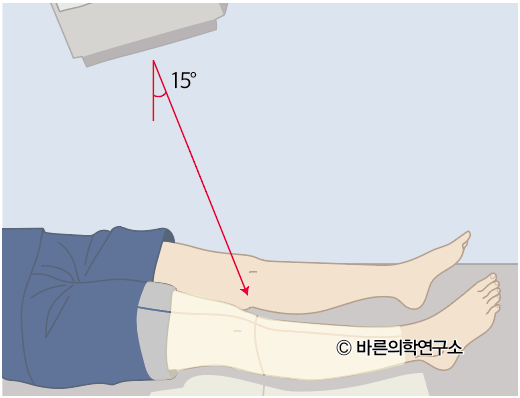

Knee both oblique
Knee axial view
- Axial view에는 여러 가지 방법이 존재
- Inferosuperior or skyline or sunrise method
- Merchant method
- Settegast method(patient prone, 90º knee flexion)
- Hughston method(patient prone, 55º knee flexion)
- Convention inferosuperior(patient supine 45º knee flexion)
- Sitting tangential method(patient sitting, <90º knee flexion)
- Laurine method(patient supine, 20º knee flexion)
Knee Skyline view(30,60,90도)
Merchant view
Knee Plateau view
Knee tunnel view
- 크게 2가지 방법 존재
Knee Standing AP view
Knee standing Rosenberg view
발목/발(ankle/foot)
발목
- (Rt or Lt) Ankle AP/lateral
- (Rt or Lt) Mortise View : Ligament tear, lateral malleolus, medial malleolus 및 talus와의 interspace 등 관찰
발
- Foot AP, oblique
- Foot lateral, standing
- Calcaneus lateral/axial
잠깐만!
|
Ankle AP
Ankle Lateral
ankle Both oblique
medial oblique | Lateral oblique |
Ankle Mortice view
Foot AP
Foot Lateral
Foot Oblique
Foot medial oblique | Foot Lateral oblique |
Calcaneus Lateral
Calcaneus Axial
척추(Spine)
경추
- AP/lateral/both oblique
± open mouth view
± swimmer view
± flexion/extension view
요추
- AP/lateral
± both oblique
± flexion/extension view
흉추/whole spine
- AP/lateral
± flexion/extension view
목(경추)
- C-spine series : C-spine AP/lateral/both oblique
- C-spine flexion/extension
- C-spine AP/lateral/both oblique
± open mouth view
± swimmer view
± flexion/extension view
C-spine AP
C-spine Both Oblique
C-Spine Lateral
C-Spine Dynamogram (Flexion/Extension)
Open mouth view
Swimmer view
등/허리(back)
- T-spine standing series: AP/lateral ± flexion/extension view
- L-S spine standing series(AP, Lateral, both oblique) + flexion/extension : Standing 안되면 Supine으로 시행
- Pelvis AP
L-Spine AP / L-S spine AP
L-Spine both oblique / L-S Spine both oblique
L spine Lateral / L-S spine Lateral
L spine flexion/extension view
flexion view | extension view |
